GABION STRUCTURES
Beauty, Strength
and Style
About Rhinoweld
RhinoWeld Welded Mesh Gabions are ideal for architectural applications such as letterboxes, garden seats, flower pots, retaining structures, feature wall claddings, sound walls, landscape features and many other applications that require the beauty of natural rock structures with the strength of the steel cage. You are only limited by your imagination!
All wire conforms to international standards for tensile strength and tolerances and are manufactured to ISO9001 accreditations. The wire is coated in a heavy Galfan protection that meets the international standards for both consistency and quality of such a coating.
Gabion Kits
Whether you are using them for erosion control, earth retention, soil stabilisation, flood control or an eye-catching feature wall, Rhinoweld Gabions are a versatile and high calibre structure designed with a Galfan coating which allows it to last for years even under the most treacherous weather conditions.
Welded Mesh Gabions
To make your purchase even easier, Rhinoweld Gabion Kits are available which includes all accessories needed to construct a Rhinoweld basket easily and efficiently. No time wasted trying to calculate number of mesh panels or spirals, we’ve done the work for you!
In addition, if you are wishing to join multiple structures together we’ve done our best to make it more economical for you by designing an ‘add-on’ kit which provides you with the panels and accessories to join multiple Gabions together without having to waste money and supplies on buying multiple full kits.
Have questions regarding Rhinoweld? Contact us today!
0.5 x 0.5 x 0.5m
STARTER KITS
WHATS INCLUDED:
2 x End Panels - 0.5m x 0.5m
2 x Side Panels - 0.5m x 0.5m
1 x Top Panel - 0.5m x 0.5m
1 x Bottom Panel - 0.5m x 0.5m
12 x Spirals - 500mm
2 x Front to Back Bracehooks - 500mm
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK5040505 | 50 x 50 |
| RWK7540505 | 75 x 75 |
| RWK1040505 | 100 x 50 |
ADD-ON KITS
WHATS INCLUDED:
1 x End Panels - 0.5m x 0.5m
2 x Side Panels - 0.5m x 0.5m
1 x Top Panel - 0.5m x 0.5m
1 x Bottom Panel - 0.5m x 0.5m
8 x Spirals - 500mm
2 x Front to Back Bracehooks - 500mm
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK5040505 | 50 x 50 |
| RWK7540505 | 75 x 75 |
| RWK1040505 | 100 x 50 |
0.5 x 0.5 x 1m
STARTER KITS
WHATS INCLUDED:
2 x End Panels - 0.5m x 0.5m
2 x Side Panels - 0.5m x 1m
1 x Top Panel - 0.5m x 1m
1 x Bottom Panel - 0.5m x 1m
8 x Spirals - 500mm
4 x Spirals - 1m
2 x Front to Back Bracehooks - 500mm
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK5040510 | 50 x 50 |
| RWK7540510 | 75 x 75 |
| RWK1040510 | 100 x 50 |
ADD-ON KITS
WHATS INCLUDED:
1 x End Panels - 0.5m x 0.5m
2 x Side Panels - 0.5m x 1m
1 x Top Panel - 0.5m x 1m
1 x Bottom Panel - 0.5m x 1m
4 x Spirals - 500mm
4 x Spirals - 1m
2 x Front to Back Bracehooks - 500mm
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWA5040510 | 50 x 50 |
| RWA7540510 | 75 x 75 |
| RWA1050510 | 100 x 50 |
0.5 x 0.5 x 2m
STARTER KITS
WHATS INCLUDED:
2 x End Panels - 0.5m x 0.5m
2 x Side Panels - 0.5m x 2m
1 x Top Panel - 0.5m x 2m
1 x Bottom Panel - 0.5m x 2m
1 x Centre Panel - 0.5m x 0.5m
12 x Spirals - 500mm
4 x Spirals - 2000mm
4 x Front to Back Bracehooks - 500mm
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK5040520 | 50 x 50 |
| RWK7540520 | 75 x 75 |
| RWK1040520 | 100 x 50 |
ADD-ON KITS
WHATS INCLUDED:
1 x End Panel - 0.5m x 0.5m
2 x Side Panels - 0.5m x 2m
1 x Top Panel - 0.5m x 2m
1 x Bottom Panel - 0.5m x 2m
1 x Centre Panel - 0.5m x 0.5m
8 x Spirals - 500mm
4 x Spirals - 2000mm
4 x Front to Back Bracehooks - 500mm
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWA5040520 | 50 x 50 |
| RWA7540520 | 75 x 75 |
| RWA1050520 | 100 x 50 |

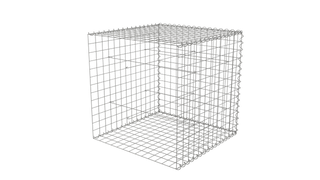

1m x 1m x 1m
STARTER KITS
WHATS INCLUDED:
2 x End Panels – 1m x 1m
2 x Side Panels – 1m x 1m
1 x Top Panel – 1m x 1m
1 x Bottom Panel – 1m x 1m
12 x Spirals – 1m
4 x Front to Back Bracehooks – 1m
2 x Bracehooks – 1m
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK504111 | 50 x 50 |
| RWK754111 | 75 x 75 |
ADD-ON KITS
WHATS INCLUDED:
1 x End Panel – 1m x 1m
2 x Side Panels – 1m x 1m
1 x Top Panel – 1m x 1m
1 x Bottom Panel – 1m x 1m
8 x Spirals – 1m
4 x Front to Back Bracehooks – 1m
2 x Bracehooks – 1m
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWA504111 | 50 x 50 |
| RWA754111 | 75 x 75 |
1m x 0.5m x 1m
STARTER KITS
WHATS INCLUDED:
2 x End Panels – 1m x 0.5m
2 x Side Panels – 1m x 1m
1 x Top Panel – 1m x 0.5m
1 x Bottom Panel – 1m x 0.5m
8 x Spirals – 1m
4 x Spirals – 0.5m
4 x Front to Back Bracehooks – 0.5m
2 x Bracehooks – 1m
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK5041051 | 50 x 50 |
| RWK7541051 | 75 x 75 |
ADD-ON KITS
WHATS INCLUDED:
1 x End Panel – 1m x 0.5m
2 x Side Panels – 1m x 1m
1 x Top Panel – 1m x 0.5m
1 x Bottom Panel – 1m x 0.5m
6 x Spirals – 1m
2 x Spirals – 0.5m
4 x Front to Back Bracehooks – 0.5m
2 x Bracehooks – 1m
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWA5041051 | 50 x 50 |
| RWA7541051 | 75 x 75 |
1m x 0.3m x 0.5m
STARTER KITS
WHATS INCLUDED:
2 x End Panels – 0.3m x 0.5m
2 x Side Panels – 0.5m x 1m
1 x Top Panel – 0.3m x 0.1m
1 x Bottom Panel – 0.3m x 1m
4 x Spirals – 1m
4 x Spirals – 0.5m
4 x Spirals – 0.3m
2 x Front to Back Bracehooks – 0.3m
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWK50410305 | 50 x 50 |
| RWK75410305 | 75 x 75 |
ADD-ON KITS
WHATS INCLUDED:
1 x End Panel – 0.3m x 0.5m
2 x Side Panels – 0.5m x 1m
1 x Top Panel – 0.3m x 0.1m
1 x Bottom Panel – 0.3m x 1m
4 x Spirals – 1m
2 x Spirals – 0.5m
2 x Spirals – 0.3m
2 x Front to Back Bracehooks – 0.3m
Available Mesh Sizes
| CODE | MESH SIZES (mm) |
|---|---|
| RWA50410305 | 50 x 50 |
| RWA75410305 | 75 x 75 |
How do I Construct my Gabion?
STEP 1
Unpack your kit and lay-out the accessories
Make sure you wear gloves!
STEP 2
Join the two side panels to the bottom panel using the 1m long spirals provided
STEP 3
Stand the side and end panels up and join them together with more of the 0.5m long spiral provided
STEP 4
Join the two end panels to the bottom panel using the 0.5m long spirals provided
STEP 5
Place the 0.5m long braces/stiffeners front to back
The braces should be placed approximately 300mm apart and 500mm up from the bottom
STEP 6
Fill the gabion with the stone of your choice
STEP 7
Place the top panel onto the gabion and fasten it to the side and end panels using the 1m & 0.5m spirals where relevant
STEP 8
Your gabion kit is now complete and ready for display!
Build your own RhinoWeld Gabion
The Range
Mesh Size: 25 x 25mm
Panel Sizes Available
| PRODUCT CODE | PANEL SIZES (m) |
|---|---|
| TBA | 0.3 x 0.5m |
| TBA | 0.3 x 1m |
| RW2530505 | 0.5 x 0.5m |
| RW2530510 | 0.5 x 1m |
| RW2531010 | 1 x 1m |
| RW2532005 | 2 x 0.5m |
| RW2532010 | 2 x 1m |
Mesh Size: 50 x 50mm
Panel Sizes Available
| PRODUCT CODE | PANEL SIZES (m) |
|---|---|
| RW5040305 | 0.3 x 0.5m |
| RW5040310 | 0.3 x 1m |
| RW5040320 | 0.3 x 2m |
| RW5040505 | 0.5 x 0.5m |
| RW5040510 | 0.5 x 1m |
| RW5041010 | 1 x 1m |
| RW5042005 | 2 x 0.5m |
| RW5042010 | 2 x 1m |
Mesh Size: 75 x 75mm
Panel Sizes Available
| PRODUCT CODE | PANEL SIZES (m) |
|---|---|
| RW7540305 | 0.3 x 0.525m |
| RW7540310 | 0.3 x 0.975m |
| RW7540320 | 0.3 x 0.2025m |
| RW7540505 | 0.525 x 0.525m |
| RW7540510 | 0.525 x 0.975m |
| RW7541010 | 0.975 x 0.975m |
| RW7542005 | 2.025 x 0.525m |
| RW7542010 | 2.025 x 0.975m |
Mesh Size: 100 x 50mm
Panel Sizes Available
| PRODUCT CODE | PANEL SIZES (m) |
|---|---|
| RW1040305 | 0.3 x 0.5m |
| RW1040310 | 0.3 x 1m |
| RW1040503 | 0.5 x 0.3m |
| RW1040505 | 0.5 x 0.5m |
| RW1040510 | 0.5 x 1m |
| RW1041003 | 1 x 0.3m |
| RW1041005 | 1 x 0.5m |
| RW1041010 | 1 x 1m |
| RW1042003 | 2 x 0.3m |
| RW1042005 | 2 x 0.5m |
| RW1042010 | 2 x 1m |
Accessories
BRACEHOOKS
These bracing wires are required to give the Weldmesh Gabion internal stability while it is being filled
| PRODUCT CODE | LENGTH | PANEL SIZES (m) |
|---|---|---|
| RWB030 | 316mm | Each wire is placed from front to back as filling proceeds |
| RWB050 | 516mm | |
| RWB054 | 540mm | |
| RWB099 | 990mm | |
| RWB100 | 1m |
SPIRALS
Spiral lacing wires are the most common method for joining the RhinoWeld weldmesh panels together. The standard pitch is 25mm and is engineered to provide a positive connection between all panels. Spirals will generally be supplied in either 0.5m lengths or 1m lengths to suit your order. Some minor on site cutting to specific lengths may be required.
| PRODUCT CODE | PANEL SIZES (m) |
|---|---|
| RWS030 | 300mm |
| RWS050 | 500mm |
| RWS052 | 520mm |
| RWS097 | 975mm |
| RWS100 | 1m |
C-CLIPS
C’ clips are used with a Lacing Gun to mechanically fasten your RhinoMesh gabions. These clips are available in both Stainless Steel and Galfan.
| PRODUCT CODE | MATERIAL | UNITS |
|---|---|---|
| RWCG | Galfan | 1,600/box |
| RWCS | Stainless Steel | 1,600/box |
LACING GUN
Pneumatic lacing tools are great to use to closing the 'C' Clips effortlessly and tightly to enhance the strength of the RhinoWeld structure.
| PRODUCT CODE | SIZE | AIR PRESSURE (MPa) |
|---|---|---|
| RWLG | 500mm x 330mm x 220mm | 0.6 - 0.7 (87 - 101psi) |
When building a Rhinoweld Structure
How do I work out what I need?
RhinoWeld Gabions are highly efficient when using more than one unit as the adjacent panel of one unit is common to the same panel of the next unit.
For Example:
2 end panels – 0.5m x 0.5m
2 side panels – 1m x 0.5m
1 top panel – 1m x 0.5m
1 bottom panel – 1m x 0.5m
2 Bracing wires – 500mm Front to Back
8 x Spiral joiners – 500mm
4 x Spiral joiners – 1m
3 end panels – 0.5m x 0.5m (saving 1 end panel)
4 side panels – 1m x 0.5m
2 top panel – 1m x 0.5m
2 bottom panel – 1m x 0.5m
4 Bracing wires – Front to Back 500mm
12 Spiral joiners – 500mm
8 Spiral joiners – 1m
4 end panels – 1m x 1m
4 side panels – 2m x 1m
2 top panel – 2m x 1m
1 bottom panel – 2m x 1m (saving 1 bottom panel)
4 Bracing wires – Front to Back 500mm
14 Spiral joiners – 500mm
6 Spiral joiners – 1m
Things to Consider
RhinoWeld Gabions are supplied as flat packed panels and are assembled onsite with the use of spiral joiners or for larger scale projects, ‘C’Clips and a Lacing gun, which is available for hire or purchase through StrataGreen.
Large retaining structures can be formed with RhinoWeld Gabions. However, you should ensure that you seek the necessary statutory approvals for each project, which may mean engaging a qualified engineer who is accustomed to the design of gabion structures and who will evaluate the site, soil and drainage considerations of the project.
The choice of infill rock is yours, however you should consider which is the most suitable type that is congruent with the design requirements. There are many varieties of rock which enhances the physical appearance of the structure through texture, shape and colour. Recycled materials such as concrete or brick is also an option if the project complements. However, be cautious that that the infill rock is compatible with the mesh size of the gabion. For example, if using a 100mm x 50mm mesh gabion, we suggest a rock graded between 75mm and 150mm. Although the weight of the rock will depend on the material in use, you should allow roughly 1.8 tonne of rock per cubic metre of RhinoWeld gabion.
Rhinoweld Gabions are a modular unit composed of a number elements, all sold separately through StrataGreen. These include: End Panels, Base Panels, Top Panels, Side Panels, Bracing Wires and Spirals or ‘C’ Clips. The amount of panels required depends on the shape and size of your structure.
